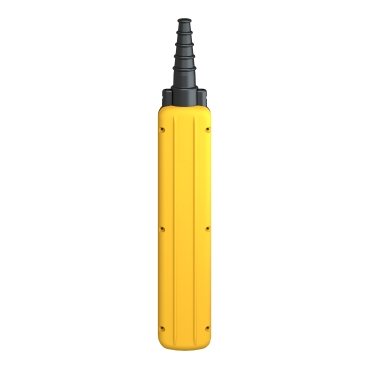

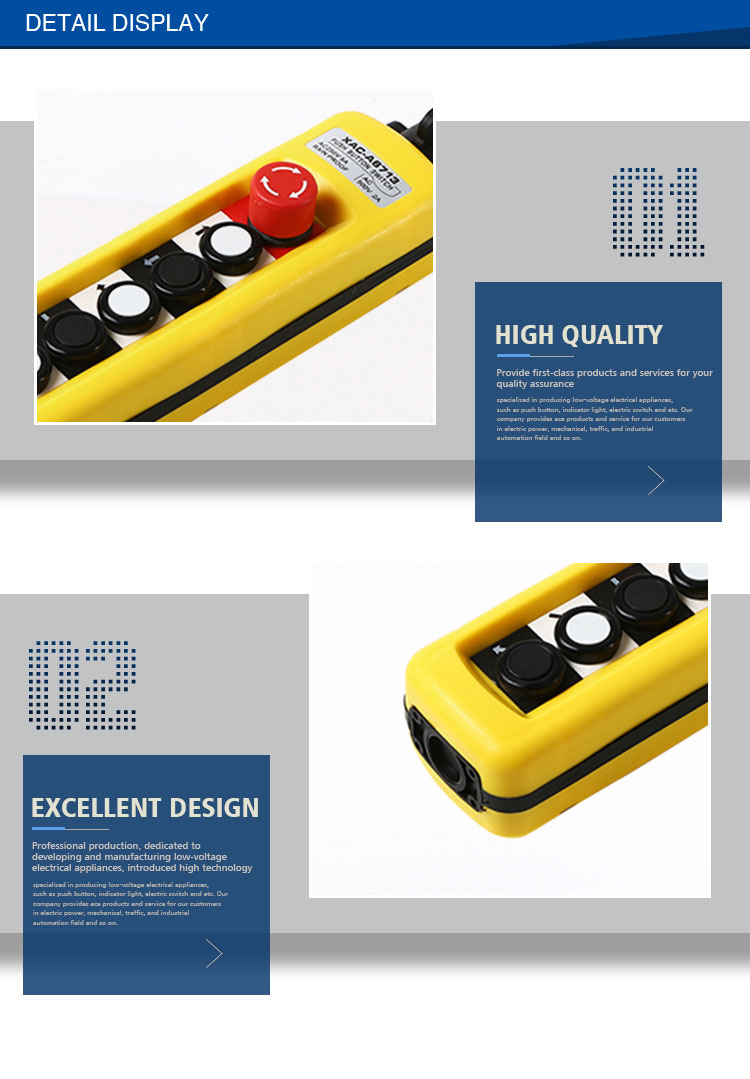

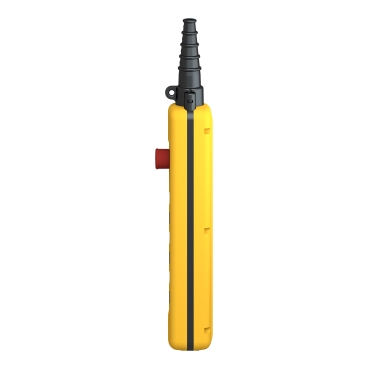

The XAC is a fully functional pendant station designed for controlling single-speed motors. It features six standard push buttons that are mechanically interlocked in pairs, along with an emergency stop operator with a diameter of 40mm. This station is resistant to impact, dust, water, and vibration, thanks to its IP65 rating, making it suitable for use in challenging environments. Tailored for mechanical handling, these durable pendant control stations are not only straightforward and user-friendly but also provide a high level of comfort for the operator. With a broad operating temperature range of -25°C to 70°C, this product offers versatility in its applications. It is housed in a yellow polypropylène double insulated enclosure. This control station is particularly well-suited for hoists and travelling crane applications. Furthermore, this robust pendant control station meets the safety standards set by IEC regulations.
Specifications:
| Control station type | Double insulated |
|---|---|
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| enclosure type | Complete and ready for use |
| Control station application | Control of a single-speed hoist motor |
| Control station composition | 6 push-buttons + 1 emergency stop |
| Control button type | First push-button 1 NO raise, slow Second push-button 1 NO lower, slow Fourth push-button 1 NO left, slow Third push-button 1 NO right, slow Stop push-button Ø 40 mm 1 NC latching Fifth push-button 1 NO forward slow Sixth push-button 1 NO reverse, slow |
| Product compatibility | ZB2BE101 for each direction ZB2BE102 for emergency stop |
| Mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections – terminals | Screw clamp terminals, 1 x 0.5…1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5…2 x 1.5 mm² with cable end |
